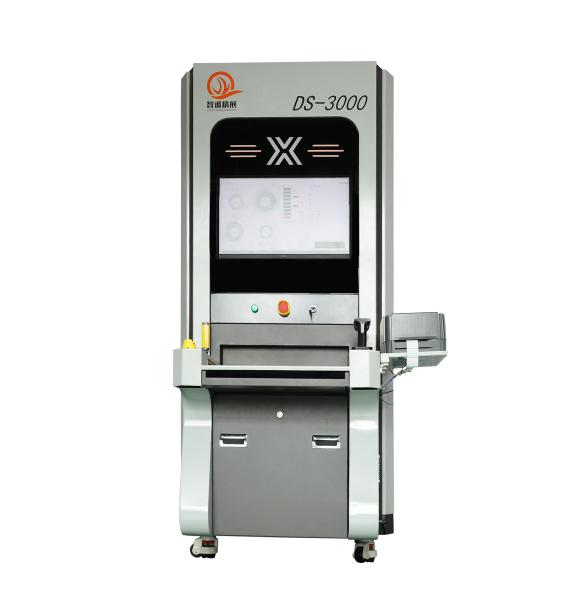

    Automatic Reel X Ray Component Counter 139um Pixel 430mm*430mm

    Ask Lasest Price
    Brand Name : Wisdomshow
    Model Number : DS-3000
    Certification : ISO9001
    Price : USD 49000-60000/unit
    Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units/month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Automatic Reel X Ray Component Counter 139um Pixel 430mm*430mm

    Automatic Reel SMD Counter X Ray Machine X Ray Component Counter


    This equipment is mainly used for the rapid counting of the reel type of material in SMT industry. Material types include all RC materials and IC materials. It is based on the high industrial 4.0 standard, intelligent modular design, and can be used for 7-17inch Tape Reel/JEDEC Tray/IC moisture sensitive package, etc. It is equipped with artificial intelligence deep learning software, cloud update system.


    With X-ray imaging technology, it can detect the production materials and obtain image information. The image will be automatically counted by SEAMARK's self-developed image algorithm, to obtain the actual quantity of materials, and classify the number of materials at the same time. These data and information can be interfaced with the customer MES system.


    X-ray sourceTypeClosed, microfocus
    Max tube voltage50-80kV
    Max tube current700μA
    Focal spot size35-100μm
    Flat panel detectorTypeSuper definition digital FPD
    Effective area430mm*430mm
    Pixel size139μm
    Resolution3072*3072

    Reel/tray

    counting

    Max size17” (430mm)
    Max thickness85mm
    Min parts size01005
    Speed7-10s
    Accuracy≥99.95%
    EquipmentDimensions908mm (L) * 1335mm (W) * 1968mm (H)
    Weight850kg
    Power supplyAC110-220V 50/60HZ
    Max power800W
    Industrial PCI7 CPU
    Displayer24” HDMI LCD

    Other

    functions

    Auto code scanningBarcode and QR code.
    Label printingprint the corresponding label when user takes out a reel.
    Management system connectionMES, ERP, WMS etc.
    SafetyRadiation leakageNo leakage, international standard: ≤1μSv/h.
    Back door safety interlockOnce users open the back door, X-ray tube will power off immediately. When the back door is open, users can’t turn on the X-ray.
    Tray collision protectionThere are steel plates protect the tray from collision when it comes out.
    Anti-pinch safety light curtainOnce the hand enters the movement range of the tray, the safety light curtain will be triggered, the tray will stop immediately, and the software will pop up a prompt at the same time. Users can continue only the hand leaves and click confirm on the prompt.
    Emergency stopIn front of the operation position, press to power off.
