    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic

    Ask Lasest Price
    Brand Name : Wisdomshow infrared BGA reballing machine
    Certification : CE ISO
    Price : $1,380.00/Pieces
    • Product Details
    • Company Profile

    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic


    ***Wisdomshow in line with reasonable prices,excellent quality and sincere service to you***

    A+ brand bga soldering station price WDS-4860 infrared BGA reballing machine for laptop motherboard from WDS paypal


    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic

    Our advantage

    1.10 years experience of the BGA Rework Station

    2.Advanced technology at demostic and abroad

    3.High reputation around the world

    4.Good and professional after-sales service

    5. Good balance of the price and quality

    infrared BGA reballing machine WDS-4860 parameter:


    Total Power

    4800W

    Upper Heating Power

    800W

    Lower Heating Power

    Second zone:1200W, Third zone: IR 2700W

    Power Supply

    AC 110V/220V±10% 50/60HZ

    Overall Dimension

    L760*W760*H680mm

    Locating Mode

    V-shape card slot, PCB holder can be adjustable

    by X and Y axes with universal jigs.

    Temperature Controlling

    K-type thermocouple closed loop control, independent temperature

    control, precision up to ±3 degree

    PCB Size

    Max 420*370mm, Min 10*10mm

    Electrical Material

    High sensitive temperature control module, Delta PLC, Touch Screen

    made-in Taiwan

    Weight of machine

    40KG


    infrared BGA reballing machine WDS-4860 specifications:

    1.WDS-4860 adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability. infrared BGA reballing machine
    2.Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

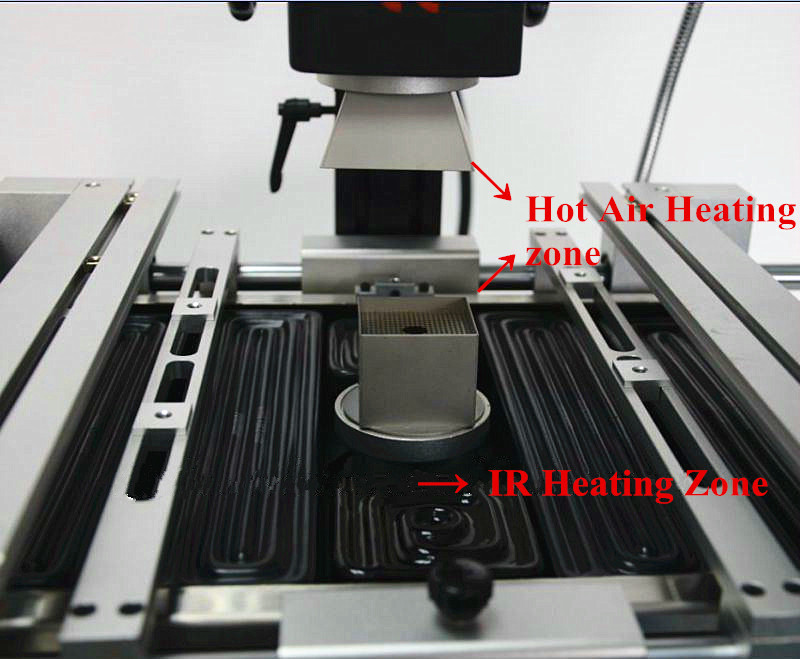

    3.Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

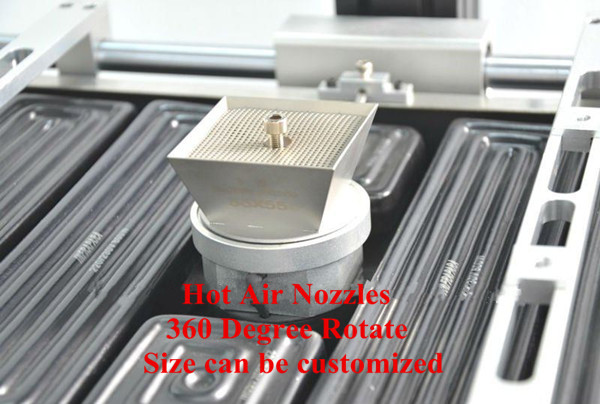

    4.The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly. infrared BGA reballing machine
    5.High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
    5.High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
    7.WDS-4860 has alarm prompt function after welding is done, specially added early warning function for convenient operation.
    8.It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function. infrared BGA reballing machine

    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic

    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic

    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic

    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic


    Packaging & Shipping

    1,Standard export wooden package for bga rework station

    2,Delivery in 2 workdays after payment confirm;

    3,Shipping by TNT, UPS ,DHL,FEDEX, EMS or by air or by sea

    4,Loading port: Shenzhen or Hongkong


    Company Information

    May I know more about your company?

    Why WDS?


    1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;

    2. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;

    3. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;

    4. Over 20 R&D engineers, with 10 year experience;

    5.100% NEW from WDS company;

    6. Over 100000 Global User;

    7. All models approved CE ISO9001;

    8. 100% QC inspect before shipment;

    9. High quality & competitive price.

    WDS-4860 Laptop BGA Machine Infrared BGA Rework Station Automatic
