    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Product Description
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Best useful machines to remove ic chip from iphone Automatic removing and mounting eballing machine for video game consoles

    Product Describable

    Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc. The main user is repairing shops and factory to provide the after-sales service and rework.

    Repair steps:
    1) Separate the BGA chip from mother board –we called desoldering
    2) Clean Pad
    3) Reballing or replace a new BGA chip directly
    4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
    5) replace a new BGA chip - we called Soldering

    Product Application

    BGA rework station could be used in :


    1. Watch / Mobile /Cell phone repair; soldering station desoldering station

    2. Notebook/ Laptop /Computer repair; heat gun

    3. XBOX 360/PS2/ PS3/PS4 Wii and so on game console repair;

    4. Othe SMD/SMT/IC BGA rework; icloud removal service

    5. BGA VGA CPU GPU ECU and Car motherboard soldering desoldering;

    6.BGA chips,QFP QFN chip,PC,PLCC PSP PSY rework.

    WDS-850 bga machine parameter


    Original place
    Brand Name
    Wisdomshow chips reballing machine
    Mode Number
    WDS-850 bga rework station
    Superior function
    Soldering and desoldering bga chip

    Parameter of
    WDS-850
    smartphone repair machine
    Power
    AC 110/220V±10% 50/60Hz
    Total Power
    7600W
    Heater power
    upper temp.zone 1200w, second temp.zone 1200w, IR zone 5000w
    Temperature Controlling
    K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
    PCB size
    Max 630*480mm Min 5*5mm
    Applicable chips
    Max: 80*80mm Min 0.8x0.8mm
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Main Features

    Main Features

    1.Hot air head and mounting head integration design, with auto soldering and desoldering functions.


    2.Independent 3 heaters, upper and lower heaters can realize move synchronously and automatically,can reach IR every position.Lower heater zone can remove up and down,support PCB board. bottom preheating area along X/Y axis. Lower heater can move up/down and support PCB,auto-controlled by motors. It can realize the upper and lower heater able to move towards target BGA, without moving PCB.


    3.PCB board adopts high accuracy slider to make sure the mount precision of BGA and PCB.


    4.Unique bottom preheating table made of Germany-imported good quality heating materials plated IR tube & constant temperature glass anti-dazzle (heat-resist up to 1800 C), pre-heating area up to 500*420mm.


    5.Preheating table, clamping device and cooling system can move integrally in X axis that make PCB locating & desoldering safer and conveniently.


    6.X and Y axis adopt motor automatic control moving way to make the alignment faster and more convenient,make the most use of the equipment space,realization of repairing large area PCB with a smaller volume of equipment.The Max plate size can reach 650*610mm,no repair dead corner.


    7.Double rocker control the camera and upper and lower heating platform to make sure
    the alignment precision accuracy.


    8.Inbuilt vacuum pump, rotate 360 in angel; fine-adjusting mounting suction nozzle.


    9.Suction nozzle can detect BGA pickup and mounting height automatically with pressure controllable within 10 grams; zero pressure available to smaller BGA pickup and mounting.

    Detail Image
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Independent 3 heating zones temperature control system

    Up-heater power: 1200W

    Down-heater power: 1200W

    IR power : 5000W


    Precision optical alignment system

    Using high definition + CCD color optical alignment system+ high definition LCD monitor

    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

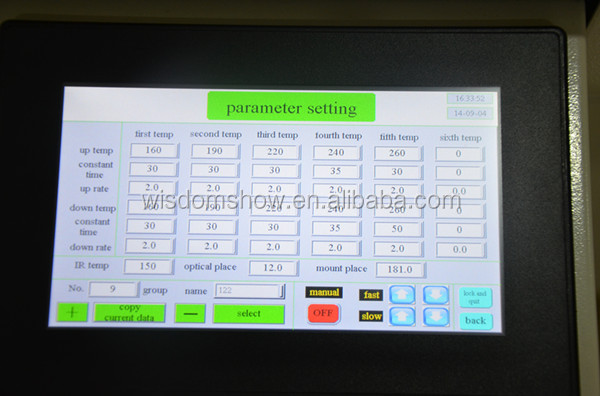

    Multi-functional and humanized operation system

    HD touch human-machine interface +8 segments temperature controlling at the same time.

    Display 4 temperature curves and instant curve analysis function

    Superior safety protection function


    With passwork protection to prevent any modication.

    Double over-temperature protection.


    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    Our Service
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Now you can order freely!!!

    Ivy Zhou whatpp+ 86 138 2520 9905 (we chat)


    Need more details please contact me thanks
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Shipping

    TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea

    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console

    Payment

    Paypal, Western Union, Escrow, T/T, Escrow, Aliexpress Pay, Others

    Packing & Delivery
    IC Chip Mounting Laptop BGA Machine CE ISO For Video Game Console
    Packaging
    Size
    Weight
    160kg
    Packaging Details
    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
