    Multifunctional BGA X Ray Machine

    Ask Lasest Price
    Brand Name : Wisdomshow X-ray
    Model Number : X-Ray S-7200
    Certification : ce
    Supply Ability : 888 Piece/Pieces per Month it's bga testing machine
    Price : $49,999.00/Pieces >=1 Pieces
    • Product Details
    • Company Profile

    Multifunctional BGA X Ray Machine

    Auto BGA inspection machine X-RAY S-7200 multi-functional electric LED IC testing equipment

    Multifunctional BGA X Ray Machine


    Product Description:


    1.Closed Tube From HAMAMATSU Japan.

    2.Imported Detector from Korea Rayence.

    3.Micro-focus

    4.Spot size down to

    5.5″x 5or 4x 3high resolution and ultra resolution CMOS digital flat pane imagel detectors

    6.60° camera tilt for oblique angle viewing

    7.22″ x 18Inspection Stage with 350° Rotation

    8.Color mapping camera with zoom window provides easy location and identification of faults

    9.Z axis movement of the x-ray tube and detector

    10.Computer controlled kV and mA settings

    11.Computer controlled variable speed X-Y stage (and rotate)

    12.Simple point and click, intuitive GUI provides access to create advanced inspection routines

    13.All s/w tools standard including (but not limited to)

    14.BGA Void detection and automatic calculations

    15.Mobile Flex Cable FPC x-ray inspection

    16.SMT Mounting and PCB X-ray inspection

    17.Easy macro recording for intuitive step and repeat programming

    18.Various measuring tools for TH, radius, area, perimeter, etc

    19.Industrial PC with Windows 7 , 24″ LCD flat panel display


    Technical parameters:

    Item

    S-7200

    Panel Detector

    Pixel Pitch

    85um

    Inspection area

    600mmx600mm

    Detector Tile Angle

    70 Degree

    X-Ray Optical Tube

    Optical Tube Style

    Sealed tube

    Optical Tube voltage

    90KV,100KV,130KV (optional)

    Optical Tube current

    250UA

    Optical Tube focus size

    5um

    Optical Tube Power

    8W

    System Magnification

    1200X

    Geometric Magnification

    125X

    Sample Table

    X-axis

    520mm

    Y-axis

    520mm

    Z1-axis

    380mm

    Z2-axis

    380mm

    Platform Deadweight

    10KG

    Software Function

    Size Detection

    Point to point&Line to line angle measure

    Bubble Detection

    BGA, semiconductor irregular area, casting solder joint bubble can be measured and inspected for cracks

    Power

    Power supply mode

    AC110-230VAC, 50/60Hz

    Computer

    Brand

    Dell

    Operation System

    Windows10

    Display

    24”LCD

    CPU

    Intel i5 6500

    Radiation Safety Standard

    < 1uSv/hr(International standard)

    Radiation leakage dose<1µSv/h.(GB15208.1~2005)

    X-Ray

    Dimensions

    Dimension

    1500mmX1300mmX1800mm

    Weight

    1500KG

    Warranty

    Tow years

    Two years warranty


    Product Features:


    Standard configuration

    1..Adjust the speed of the stage through the space bar: slow, constant, fast

    2.Keyboard control x, y, Z1 Z2 four axis movement

    3.The user can control the speed of the stage by programming

    Full automatic BGA detection program

    1.Simple mouse click programming to automatically detect each BGA on the component without operator intervention

    2.Automatic BGA detection program can accurately check BGA diameter, cavity proportion area and roundness

    3.Automatic BGA detection program has high repeatability of detection results for process control

    4.The test results will be displayed on the screen and can be output to excel for review and archiving

    NC programming

    1.Simple mouse click operation to operate detection program

    2.Sample table can be positioned in X, Y direction;X-ray optical tube and detector can be positioned in Z direction

    3.Software set voltage and current

    4.Image settings: brightness, contrast, auto adjustment and exposure

    5.Users can set the pause time for program switching

    6.Anti collision system can meet the maximum tilt and observation

    Multifunctional BGA X Ray Machine

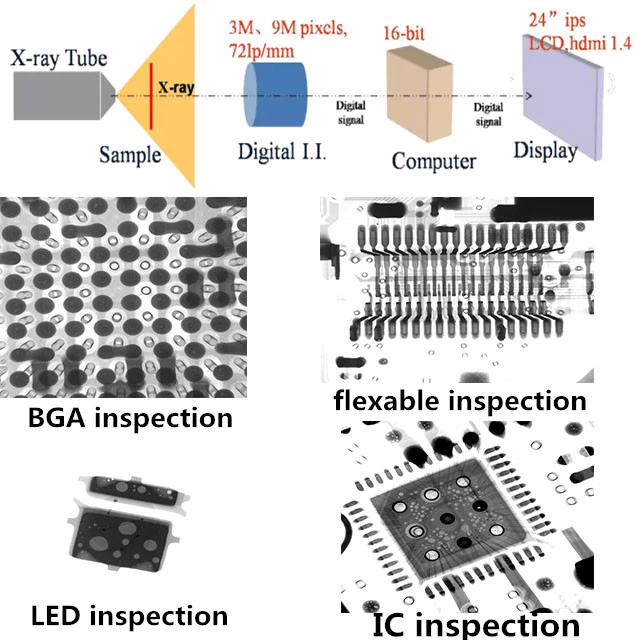

    Product Applications:


    • BGA Solder Ball Bubble Caculation
    • IC Chips Inside Connector Wire Inspection
    • PCB FPC Mobile Flex Cable Soldering Inspection
    • Inspect the Voids under Joint
    • PCBA BGA/IC LED Aliminum die casting Battery connector inspecting
    • Semiconductor package
    • Electronic connector module.
    • Original Package X-Ray
    • Aerospace components
    • Medical appliances
    • Automation components

    Multifunctional BGA X Ray Machine


    FAQ:

    1. How about the package ? Is it safe during the delivery ?

    All PCB X-ray inspection machine is packed by standard strong wooden carton.

    It is safe during shipping.

    2. What is the delivery way ? How many days will the machine arrrive us ?

    We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.

    Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.

    Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.

    3. Do you provide the Warranty ? How about the after sales service ?

    1 year warranty free for spare parts, Whole life technicial support.

    We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

    4, If we come to your factory, if you will provide the free training ?

    Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

    5. What is the payment way ?

    We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.


    Now you can order!
