    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA

    Ask Lasest Price
    Brand Name : WDS
    Certification : CE ISO
    Price : $12,096.00/Pieces
    • Product Details
    • Company Profile

    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA

    Application Domain
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA

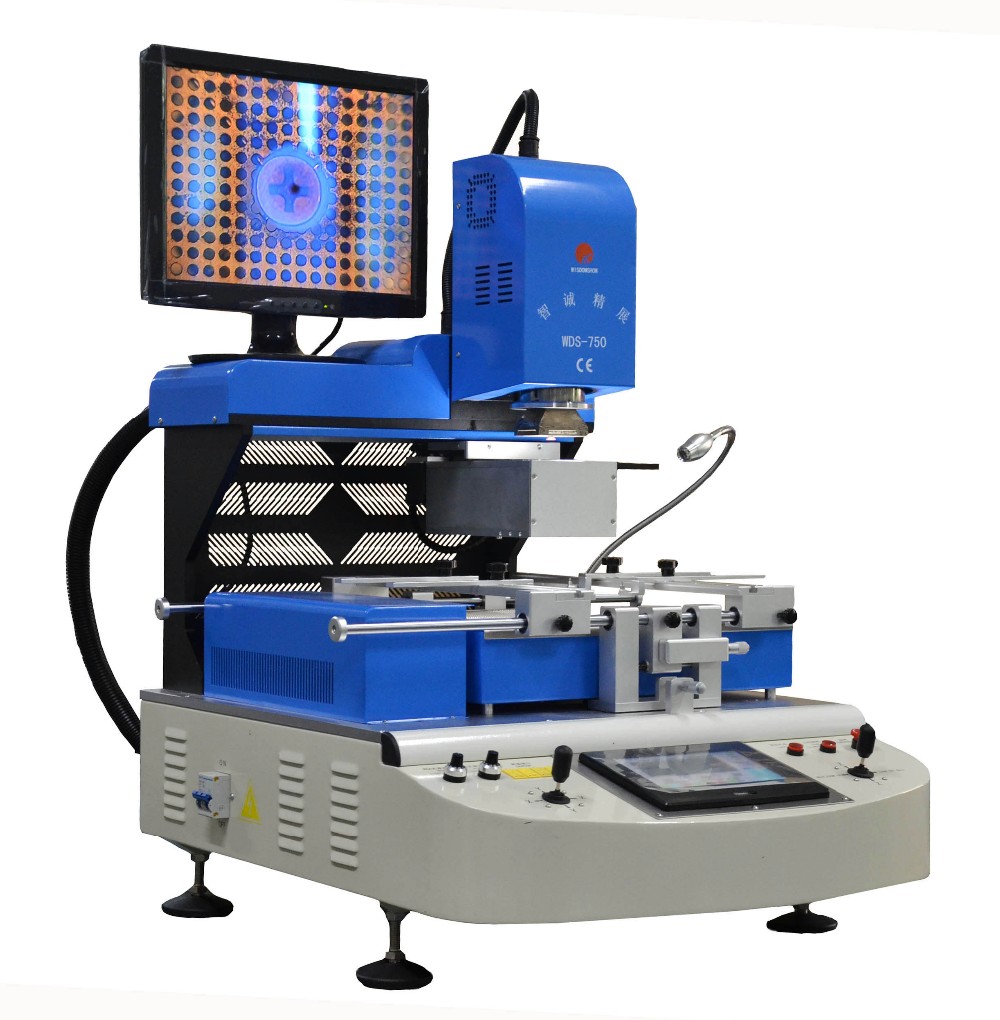

    Moveable optical alignment WDS-750 automatic emmc chips repair machine for BGA LED IC repairing
    Product Description
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Power supply
    AC 110V/220V±10% 50/60Hz
    Total power
    Max 6800W
    Heater power
    Upper heater 1200W,bottom heater 1200W,IR heater 4200W(2400W is controlled)
    Locating way
    Optical camera+ V-shape card slot + adjustable PCB support jigs + laser position for fast location
    Temperature controlling
    (high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃
    Electrical material
    Servo motor + PLC control + smart temp.controller + high sensitive touch screen
    PCB size
    Max 550×380mm Min 10×10 mm(customizable)
    Applicable PCB thickness
    0.5-8mm
    Chip amplification multiple
    1-200X
    Chip size
    0.2*0.4mm-9cm
    Min. chip space
    0.15mm
    Max. mount loading
    500G
    Mounting accuracy
    ±0.01mm
    Alignment system
    Optical lens + HD industrial camera
    Temperature Interface
    4pcs
    Tin spot monitoring
    Optional external camera to monitor solder ball melting process during welding
    Optical camera
    Can be removed front and back,left and right,prevent the dead angle
    Overall dimension
    L830×W670×H850mm
    Weight
    90KG
    Detailed Images
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Precision Optical Alignment System
    ● HD adjustable CCD color optical alignment system with split vision,zoom in,zoom out and auto-focusing functions,equipped with aberration detection device,brightness adjustment device and software operation,can adjust image resolution ● Remove and pick up the chip automatically.Auto feeding system.
    ● Manual & automatic modes are available ● Solder, desolder, mount, pick and replace the chip automatically ● Servo motor + Panasonic PLC control
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA

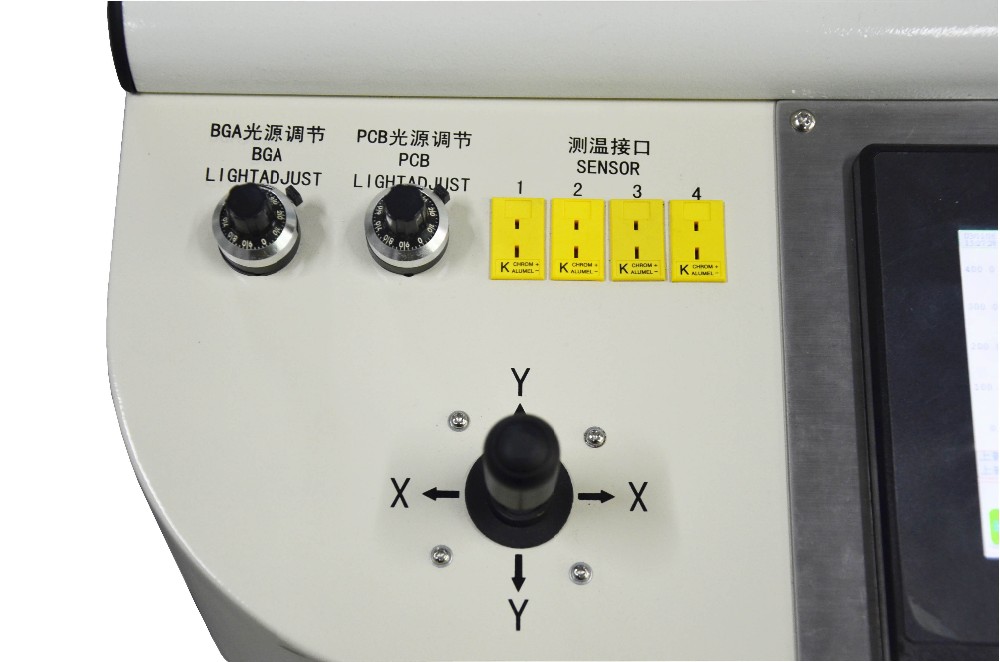

    Joystick Control of CCD Camera Control the camera to move left & right,front & back,without vision dead corner,realize that repairing large PCB with relatively small device volume.
    BGA light & PCB light Adjust Slightly adjust the LED light of CCD lens, make the image on LCD more clearly,increase the success rate.
    Sensor
    Real-time detect and analyze temperature at multipoint,determine the temperature of air outlet and tin melting point,calibrate the temperature.
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA

    Joystick Control 1. Zoom in & zoom out the image 2. Top head up/down movement 3. The button at the top of joystick,make the top head back to origin.
    Laser positioning for fast location on PCB.
    Emergency Button
    Pressing it to cut off the power supply in case of emergency.emmc chips repair machine
    Ensure 100% safety of operator and machine.
    full auto bga rework station ECU repair machine automatic IC repair
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Flexible location method
    1. ❶ PCB support+ ❷ universal fixture+ ❸ V-shape slot Different method for different PCB shape 2. Moveable PCB shelf 3.IR heating power can be controlled by the right side switches
    server TV LED motherboard repair machine LED module motherboard repair machine
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Packing & Delivery
    Movable Optical Alignment EMMC Chip Repair Machine 0.5mm-8mm BGA
    Package

    1,Standard export wooden package for bga rework station:108*93*83cm,160KG;

    2,Delivery in 2 workdays after payment confirm;

    3,Shipping by TNT, UPS ,DHL,FEDEX, or by air ;

    4,Loading port: Shenzhen or Hongkong.LED module motherboard repair machine

    Why Choose Us

    ● We are manufacturer = own factory+ machine design+sheet metal produced by ourselves+spray the powder+ strong assemble the machine team + packaging+free training ● Rich experience in BGA rework station field ● Develop new products to meet different requirements based on customer feedback ● Provide OEM services ● 100% NEW from WDS factory ● Have excellent teams and focus on product development & design, quality control & inspection ● Good reputation both at home and abroad
